Excuse me please for poor English.

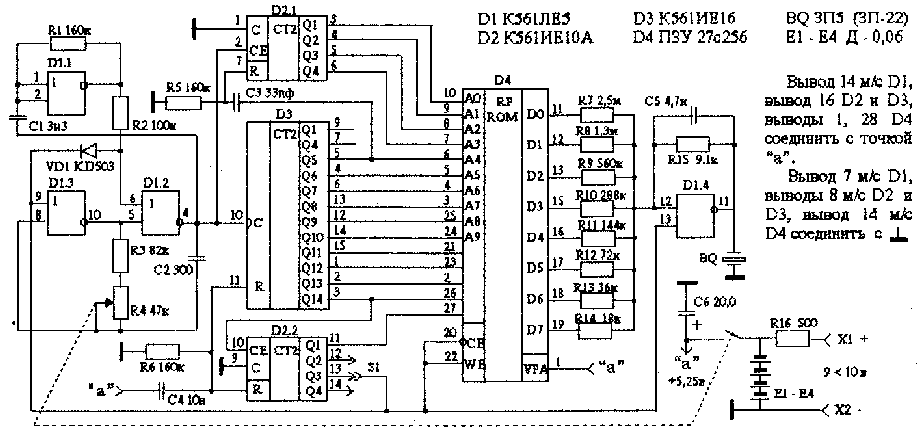

Cõåìà contains the double-frequency master clock D1.1, D1.2, D1.3, multidigit binary counter D2, D3, reprogrammed ROM D4 and digital/analog converter R7 < R14 c by an output stage D1.4. A load which one is the sound converter BQ such as ÇÏ-5 or ÇÏ-22.
The circuit{*scheme*} as follows works:
At powerup through the capacitor Ñ4 and the resistor R6 proceeds{*runs*} a current of a charge and (reset) installation{*aim*} in a reset state of the meter{*counter*} D2, D3 is realized. As a result of this target potential of high bit (the conclusion 13 D2.2) is installed in “0”. The indicated potential opens out a valve D1.3 (conclusion 9) and ROM (conclusions 20 and 22). Through the diode VD1 an output{*exit*} of a valve D1.3 from the output{*exit*} of a valve D1.3 from an output{*exit*} an of a valve D1.3 from valves D1.2 and D1.3. The frequency of shaped impulses is defined by capacitance of a capacitor Ñ2 and resistors R3, R4. Preferably{*preferentially*} to select frequency 16, or 11, or 8êÃö. The slide control is realized by the resistor R4.
The meter{*counter*} starts to work. For synchronization of the meter{*counter*} D2.1 and D3 the differential chain the capacitor Ñ3 and resistor R5 is.
The target categories of the meter{*counter*} are on-line to a ROM therefore the written to ROM the sound information is selected. The digital/analog converter (DAC R7 < R14) will convert code patterns to an analog signal. For the coordination of the DAC with a sound converter the output stage on D1.4 in a linear condition is used. The resistor R15 provides feedback. The capacitor Ñ5 and resistor R15 will derivate a filter of a low frequency (low-pass filter) with a cut-off frequency about 16êÃö for noise reduction.
After usage of all capacity of a ROM (32768 readout) the cycle is retried in the event that the cross connection S1 is on-line to a conclusion 13 D2.2 and the phrase is played back 2 times. If the cross connection S1 is on-line to a conclusion 12 D2.2, the phrase is played back 1 time, and if to a conclusion 14, the phrase is played back 4 times. After that on an appropriate conclusion 12, 13 or 14 D2.2 occurs{*comes up*} “1”, the locking ROM on conclusions 20, 22 and output stage D1.4 on a conclusion 13 for decrease{*reduction*} of power consumption in a mode of a space and is simultaneously disabled a valve D1.3 on a conclusion 9. Thus the master clock will be realized{*sold*} on elements D1.1 D1.2, and the target frequency is defined by the capacitor Ñ1 and resistors R1, R3, R4. The master-oscillator frequency is reduced roughly in 1000 times. The duration of a space between reproductions depends on this frequency. Thus the duration of a space will be single, twofold or quadruple depending on connection a cross connection S1 to a conclusion 12, 13 or 14 D2.2.
The space is prolonged before decrease{*reduction*} of a potential on a conclusion with a cross connection S1 up to equal “0”, after that the running cycle - reproduction + space is retried.
The duration of one-time reproduction depends on a choice of frequency of a clock signal generator D1.2 D1.3 and is adjusted by the capacitor Ñ2 and resistors R3, R4. The resistor R4 is for speed control of the words the user. It is recommended, that the speed of the words in one extreme position should correspond{*met*} 120 words one minute and the speed of the words in the other extreme position corresponded{*met*} 480 words one minute.
The duration of a space is adjusted by the capacitor Ñ1 and resistor R1. It is recommended to adjust to quadruple repetition and space by duration about 20 minutes.
The quality of sounding is adjusted by synchronization of operation of the meter{*counter*} D2.1 D2.2 and D3 by means of a differential chain Ñ3 and R5. Besides the quality of sounding is defined the DAC R7 < R14.
The recording of a sound in a ROM is made by the programmator. The file for programming a ROM is prepared computer-aided, having a sound card. The choice of the “wav” format 16êÃö 8áèò will allow to write to a ROM a sound by duration of 2 sec., the format 11êÃö 8áèò will supply{*ensure*} duration of 3 sec, the format 8êÃö 8áèò will supply{*ensure*} duration of 4 sec.
Phrase - “ the formulas of suggestion ” to constitute in positive and categorical expressions to escape alternate corpuscle “not”. For example: “ To throw smoking ”, and phrase “to not smoke” - will be wrong. The phrase expressing your desire, which one for you already is present, is not effective. The desire remain by desire. For example, if you already wish to throw to smoke, it is necessary to be encoded on operations, which one should reduce in desirable result. For example: « To put a cigarette back » or “ Abhorrence for smoking ”. At drawing up of the formula of suggestion to decide what operations will put{*cause*} to a ultimate goal, to try to define them as it is possible more precisely. The phrases for suggestion should be always aimed at the nearest future. From listening the formula of suggestion enclosing a phrase to cover by a musical piece. The effect similar as for 25 frames will be received. Recording to make with an audio level providing volume of reproduction at a level of whisper. In the afternoon the charm should be worn with itself, night to lay near a cushion.
METHOD And SYSTEM{*DEVICE*} ARE PROTECTED by the PATENT FOR the INVENTION ¹ 2109523. Usage in personal not commercial objectives is admitted. Usage in commercial objectives - under the agreement with the patentee.


“Wearing” a ROM is made by the special programmator, the file for which one is prepared with the help of the personal computer (PC) having multimedia (or sound card). So in the format 16 kGz (8 bits) the sound by duration 2 with; usage wav 11 kGz (8 bits is possible to write) will supply{*ensure*} three -, and wav 8 kGz (8 bits) - four-second recordings. Usage wav 6 kGz (8 bits) is given low, though also satisfactory, by(with) quality of sounding.
At creation of required files are applied the program of the driver of a sound card, program menu and standard technologies of a PC user. The necessary format at first is selected. For example, wav 11 kGz (8 bits). By the way, on same 11 kGz the stimulator of abilities should work and our charm - at reproduction by him{*it*} of the formula of suggestion with normal speed (that is when the period of single reading of a ROM constitutes 3 ñ). The preparation of files is essentially easied, if the specialized sound programs, for example Cool Edit 1.50 are used.
“Wearing” a ROM run ins strict correspondence with the instruction to the programmator. The signal acting{*arriving*} from the file, cooked for a cladding, should provide volume of reproduction with a charm at a level of whisper. Well and if no neither instruction, nor programmator, even of the unpretentious PC, there is one: to access with the appropriate order in any of firms on service of cash computers. The equipment there, as a rule, good enough, and experts experimental{*experienced*}. Means, there are all basis to hope, that “wearing” a ROM will be executed properly. Specially - if at the circulation in firm alongside with the order it is granted also the file for the programmator beforehand cooked by you on any PC with a sound card and copied on a diskette. If the firm executes simple operations of service, programmator can and to not be.
